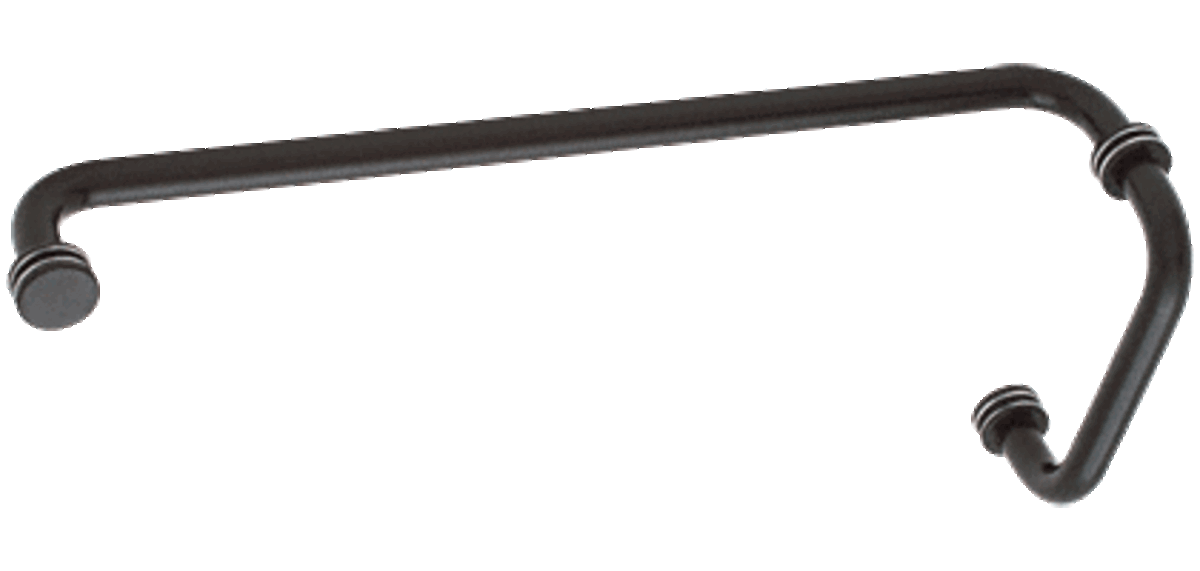

CRL 6" Pull Handle and 18" Towel Bar BM Series Combination With Metal Washers
Item #: BM6X18MBL
Finish / ColorMatte Black
Quantity
- Unit of Measure :
- Each
- Minimum Order Quantity :
- 1
- Shipping Weight :
- 1.52 Pounds
Premium Finish
Corrosion resistant and durable
Easy Installation
All hardware included
Stylish & Functional
Designed for everyday use
Multiple Finishes
Available in a variety of finishes
Product Details
Key specifications and measurements
- Finish / Color
- Matte Black
- Construction
- Tubular
- Diameter
- 3/4 in. (19 mm)
- Glazing Thickness
- 1/4 in. To 1/2 in. (6 mm To 12 mm)
- Material
- Brass
- Mounting Type
- Glass Mount - Back To Back
- Pull Mounting Center To Center
- 6 in. (152 mm)
- Series
- BM
- Style Washer Diameter
- 1-1/4 in. (32 mm)
- Style Washers
- Yes
- Towel Bar Mounting Center To Center
- 18 in. (457 mm)
Product Overview
The CRL BM Series of Pull Handle/Towel Bar Combinations With Metal Washers are provided with all the hardware required for installation. They are constructed of 1.5 mil thick heavy brass tubing. Each set consists of a pull handle/towel bar set, along with decorative metal back-up washers and plastic washers to protect against glass-to-metal contact.
Key Features
- Available in Several Beautiful Finishes
- Provides a Functional Pull Handle for Inside the Shower Enclosure, Along with a Convenient Towel Bar for the Outside
- Attractive Metal Washers
- Use Monolithic Tempered Glass
Specifications
- Material
- 3/4" (19 mm) Diameter Brass Tubing (1.5 mil thick), 1-1/4" (32 mm) Diameter Metal Washers
- Glass Thickness Range
- 1/4" to 1/2" (6 to 12 mm)
- Hole Diameter Required
- 1/2" (12 mm)
- Center-to-Center Hole Spacing
- 6" Pull = 6" (152 mm) 8" Pull = 8" (203 mm) 12" Pull = 12" (305 mm) 12" Towel Bar = 12" (305 mm) 18" Towel Bar = 18" (457 mm) 20" Towel Bar = 20" (508 mm) 22" Towel Bar = 22" (559 mm) 24" Towel Bar = 24" (610 mm)
Technical References & CAD Drawings
Download product specifications and CAD files.
- BM Series Combination Handle Detailed CAD Drawings.pdf
CAD Drawings - pdf · PDF · 189 KB
- Frameless Shower Door Hardware Catalog
Brochures & Literature · PDF · 12.0 MB
